Industrial Racking Systems: The Ultimate Storage Solutions for Your Warehouse

Efficient storage solutions serve as the primary requirement for establishing a successful warehouse operation. Businesses today need to control higher inventory amounts while their operations require dependable storage solutions which can adapt to their changing needs. Businesses can achieve optimal space utilization and improved operational efficiency through industrial racking systems which provide both adaptable storage solutions and strong storage capabilities. The article presents a comprehensive study of industrial racking systems through its examination of their multiple system types and their distinct advantages which enhance warehouse performance. The guide provides necessary information for your business to make better choices whether you want to extend your existing system or create a new one.Find more info now.

Understanding Racking Systems

What Are Industrial Racking Systems?

Modern storage racks are a business feature, designed specifically to heighten the organization, accessibility, and efficiency of warehouses, factories, and distribution centers. Unlike horizontal shelving systems, such racks are designed to help store goods less crowdedly by utilizing the vertical space. Usually made from robust material, such as steel, blue storage racks are designed to bear massive loads, as well as the toughest of inhospitable industrial environments.

There are several types of industrial racking systems tailored to meet specific needs, such as pallet racking, cantilever racking, and mobile racking. Pallet racking, one of the most common types, includes subcategories like selective, drive-in, and push-back racking, each suited for different storage and accessibility requirements. For example, selective pallet racking is ideal for warehouses with frequently accessed inventory, while drive-in racking is better for storing large quantities of similar items in a high-density layout.

The global industrial racking systems market is expected to rise at a compound annual growth rate (CAGR) of 6.8% between 2023 and 2030, according to reports projecting this. The e-commerce industry expanding at an unprecedented rate will necessitate efficient supply chain solutions and racking systems. Advancements in racking technologies, related to smart and automated solutions, are transforming how industrial storage works in many ways. Investing in newer racking solutions increases space utilization, reducing operational expenditures, and streamlining inventory management. Therefore, modern racking is the heart of today's logistics and warehousing business.

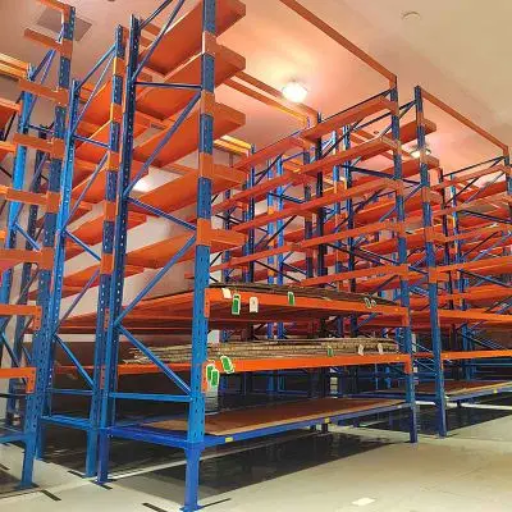

Types of Racking Systems

Selective Racking

The selective racking system is the most common type of system that grants direct access to every pallet. It is widely adaptable and cost-effective, thereby the system is applicable to warehouses with a variety of products. The market implies that over 40% of the total market sales are done by selective racking systems because of their simplicity and being made amenable for expansion.

Drive-In and Drive-Through Racking

Best suited for high-density storage, they allow the forklift to enter inside the racking system to handle the placement or retrieval of pallets. In terms of functioning, drive-in racking includes a last-in, first-out (LIFO) inventory-holding strategy, while drive-through racking involves a first-in, first-out (FIFO) inventory-holding strategy. These systems generally utilize up to 75% higher storage capacity compared to the traditional racking system.

Push-Back Racking

High-density storage with multiple pallets per level is the specialty of push-back racking. Hence, pallets are retracted by gravity on inclined rails in a LIFO fashion as they are picked off. Industry stats show this system can save up up to 35% of aisle space, making it a powerful choice for businesses with a large number of product turnovers.

Pallet Flow Racking

The existence of a pallet flow racking system is based on the idea of using gravity to facilitate pallets moving smoothly along the inclined tracks. Naturally, these designs were most desirable when there was FIFO inventory type in place. Examining if pallet flow racking adds value to material through accelerating standard of more efficient picking by 20-30% due to reduction of handling times.

Cantilever Racking

Cantilever racking is used for storage of long and awkward items such as lumber, pipes, or furniture. As it is not as restrictive as other systems, it is fully customizable. Capable of accommodating individual weights starting from 500 lbs to beyond 5,000 lbs per arm, these systems enable customers to have high-quality construction, appealing to merchandise, personal conveniences, and permanent structural needs needed for rates.

Pallet Rack Systems

Storage of palletized products is provided in the modern warehousing and distribution schemes. The main purpose of its development is to improve the available storage space to stimulate both upward and linear storage space; thus, the operators appear to find enough room in familiar territories where products are stored. Where storage administration is concerned, popular or differing types of racks characterize every storage area. Selective pallet racking, productive in high SKU count situations, allows immediate access for every pallet. All drive-in or drive-through racking permits maximum density for many similar commodities. Yet other systems, for instance push-back racking, marginally increase storage efficiencies by means of multilayered rows of pallets and combine aisles to booty, respectively. Yet through technology advancements, users of modern pallet racks will supposedly lump them with warehouse management systems into WMS to facilitate inventory tracking and quick storage-retrieval times.

Pallet racking materials are known to have load capacities per shelf that range from 1,500 to a little over 5,500 lbs, given in accordance with design requirements in the case of structural or roll-formed steel structures. As witnessed by different industries so far, efficient working within the warehouse-module processes are always enhanced by the addition of robotic racking or automated storage and retrieval system. The pallet racking systems, which can be maintained as needed, are added into the arena of work to significantly assist with warehouse-physiological layouts.

Warehouse Pallet Racking Options

High-Density Storage Solutions

High density storage solutions have been developed to allow users to use their floor space more optimally without compromising efficiency. This type of system works well for companies which have big stocks to manage or where space in the warehouse has run short. Two of the most popular high-density systems are Drive-In Racking System and Push Back Racking System.

Drive-in racking: This system caters perfectly for high-volume storage of identical loads. A forklift drives directly into the racking configuration, whether it is single or double entry, thus maximizing space through drive-in racking. This is generally one way of removing or reducing wide aisles and maximizing storage density: you can enjoy an average 75% increase in space density conversely to the previous basic selective pallet racking.

Push-Back Racking: In Push-Back Rack Systems, a further number of cars ride parallelly in one another and move on ramped rails. This particular rack stores pallets in "last-in, first-out" (LIFO) mode. They can offer up to 90% space efficiency based on warehouse geometry. To achieve this rate, push-back systems work wonders for the service that requires the balance of storage density and inventory rotation.

Teardrop Pallet Rack Systems

This type of pallet rack is wildly accredited in modern-day warehouses as one of the most versatile available all over the world. These are named after the "teardrop" feature above-the-hole shaped in the upright section to make assembly a walk in the clouds and greatly sturdy. There are very few pallet racks that EC are designed to come with this range's kind of shelving or beam style, making it an investment worth bragging about in a wide range of industries.

Recent data we got to know was that tear drop pallet racks, in contrast to traditional shelving systems, could enhance storage efficiency up to 30%. These systems will not occupy the floor, yet will certainly make use of the vertical space, besides making available access to the products. Tear-drop pallets are very useful automated material-handling devices and are increasingly being integrated into today's automation trend in the warehouse. To meet the high-throughput operational needs, the increase demand from eCommerce retailers and just-in-time inventory models can be fulfilled by teardrop pallet racks.

Pallet Rack Safety Standards

Understanding Safety Regulations for Pallet Racking Systems

Legal installation needs for pallet rack systems are important for the safeguarding of personnel, the prevention of accidents, and the preservation of valuable inventory. The United States government and the OSHA decided to put clear guidelines that every warehouse should follow. OSHA guidelines say that the installation, operation, and maintenance of pallet racking must be in line with the dictated instructions compiled by the manufacturer, and that is also one of the permitted loaded weight distribution instructions to prevent overloading.

A significant regulation is that clear aisle spaces should be maintained for safe forklift operations while ensuring minimal access to workers. In general, OSHA calls for nothing less than 3 feet of clear space between the faces of the uprights and the aisles/pathways where the machinery operates with utmost regard given to securely attaching the racks to the floor so they do not tumble during seismic activity. Inspections need to be conducted periodically to diagnose any damages, bending, or misalignment in the beams and uprights. The remaining data go by claiming that 90% of racking systems have fallen due to forklift incidences, stressing the importance of guardrails and impact protection systems once again.

The greater national acceptance of ANSI MH16.1 standards as proposed by the Rack Manufacturers Institute, which works alongside to maintain OSHA norms, has emerged. These standards justifiably deal with load capacity, installation procedures, and the location in conjunction with load data. Either after rigorous testing or through calculation, it emerged that when the safest loading condition falls between twenty to twenty-five percent below the specified threshold for this application, it causes a measure of safety margins as a means to eliminate residual uncertainty.

Why It is Critical to Maintain a Safe Rack System

The safety of warehouses can be enhanced through the proper maintenance of rack systems. Safe racking systems should be maintained so that there can be no accidents that would endanger workers' lives and those who come down from respectalive incidents of injuries. Over 10 % of warehouse facility incidents are usually racking system-related, according to industry statistics released last year. Specific preventive actions, such as regular inspections and preventive maintenance are advised by the OSHA to minimize potential incidents. They notify one that to check for visible signs of the failure of the rack as per the set standards (bent beams, loose bolts, any misaligned structure, etc.); inspection must be done every six months.

A recent study has shown that approximately 35% of failures in the racking systems can probably be prevented, if warehouse managers ensure safety regarding the reinforcement of columns and equal loading. Indeed, the weight capacity of the racks should be known upfront; hence, clear warnings with respect to the load should be boldly elucidated near or at higher locations of the extremities. With this action, the intention is to remove doubt. That will make an impact. The weight limitations should be displayed at the workplace for the attention of all employees in order to avoid any issues with overloading.

Regarding sensors and the real-time weight monitoring of pallet systems via IoT, we may view these devices not only from the perspective of weight data but also in terms of mass distribution and location of weak zones-information that can be of great utility in the process of maintaining system health. Human error prevention mechanisms composed of regular inspections and the latest technology will help to create an additional degree of safety and efficiency in the warehouse.

Material Durability and Construction

Structural Steel vs. Other Materials

A shelving system can persist for a long time only if it is made correctly, and materials can be given special credit for that. Steel has been a front-runner for shedding systems due to its capability to resist pressures and weather and take loads more effectively with less deformation. Steel, with its refinement, can support high-level loads without deformation due to compression by the surrounding members and can sustain any kind of environmental challenge like high temperatures or moisture. For instance, a typical structural steel with a tensile strength ranging between 400 and 550 MPa (megapascals) is higher than materials used more generally such as aluminum or wood,

By contrast, aluminum is lightweight and corrosion-resistant-the lightest non-ferric metal that is resistant to rust at the same time-marking the best choice for some applications that require portability or have an adverse environment for rust. Tensile strengths of aluminum generally varied from 70MPa to 700MPa (dependent on alloy); this is actually significantly lower than that of structural steel; therefore, even their great cost per pound (although a heavy-duty option would be cost-effective for dual use anyway) plays no part.

Now the discussion is about wood, cheap and easy to work with but not durable at all. Wooden shelves are simply created with no strength compared to steel, although what is very much of concern is the tendency to warp, crack, or deteriorate with time. A proper example might be untreated wood collapsing when exposed to extreme damp, while mild steel structures with which such elements will fatigue to be designed for.

Choosing the Best Decking for Your Shelving Units

1. Wire Mesh Decking

Wire mesh decking is quite generally employed for industrial shelving for various reasons. One common opportunity that is increasingly well known is their flexibility in functionality and endurance. They present good reasons for advantages. One more reason could be due to the fact that they are easy to clean and have excellent load-bearing capacity. One great advantage of wire decking is free airflow; with this feature, the decking would not raise the distributed dust or animals on the rake as it would otherwise have. The fire safety is given the advantage of water-sprinkle penetration. To a degree that wire mesh deckings are quite strong and can carry from 2000-3500 pounds based on the wire wire caliber and the system, they perform heavy-duty applications.

2. Wooden Decking

In many scenarios, wood serves as an inexpensive option and provides personalization steel when dealing with wood decking; that is to say, minimum circumstances do demand the very certain surface materials that else sphere's compromise is nullified with wood decking. Wood decking has a relatively lower load-accommodated grade, in general of course, compared to metal. Besides, its additional aspect is all about being exterminated by environmental variables such as water and temperature, both of them being responsible for wear and negative influences on the longevity of the wood decking.

3. Steel Decking

Steel decking supporting loads under the right conditions will offer the highest load-bearing capacities and point load resistance. A particular deck could support approximately 5,000 pounds per shelf in such demanding applications. Corrugated steel decks, on the other hand, exhibit an excellent resistance to both moisture and rust as well as damage, making steel decks the best product to house materials for extended periods within industrial or cold storage areas.

4. Solid Metal Decking

They resist rust and serve to diffuse dust agents and general dirt, and thus it is convenient if solid-metal decking guarantees protection from whatever falls to the deck while inculcating easy wipe-down surfaces betokening their cleanliness in lines of storage of food or pharmaceutical. Coated, they are protected from rust and can carry out their duties under moderate to heavy loads, depending upon the method of production.

Automation in Racking Systems

Benefits of Automated Racking Solutions

Optimization in holding Density

Pallet live racking and shuttle racking are the type of warehouse automated solutions that aid in remaining fully utilized. Industrial approximations indicate that the storage density can increase by as much as 40%, which only means that more items can be stored in the warehouse.

Higher Effectiveness and Productivity

Automated solutions make the entire operation of picking and replenishing faster through using robots and conveyor systems hence requiring an extremely low human laboring element. Research shows that amongst the various warehouse operations processes, automation alone can increase the productivity of picking by two-thirds; the labor force of a project can be downsized by around 70 percent.

Cost-Effectiveness

By asserting control over the conduction of operations, a significant decrease is realized in human errors with negligible scope for labor on automation control racking systems. A potential saving is energy consumption, thus making it worth the investment.

Safety

With automation coming in-and particularly when an element of the high-risk parameters is associated with a repetitive task by employees, such as handling, stacking and re-stocking in hiked up racks on opposite side of the huge-accident rate-cycle, the injury odds are much, much decreased, and in this regard on this risk spectrum.

Scalability and Flexibility

Here, highly flexible, automated systems solutions allow enterprises to make rapid changes in inventory requirements. For example, modular design permits future expansion for growing storage facilities; hence such systems can be considered as the most suitable partner for emergent automated organizations intending to seek an edge over competition.

Integrating Automation with Pallet Racks

There will always be a heightened likelihood of experiencing change as automation enwraps a pallet rack system that will hardly fall behind it when in need of a paradigm shift. The integration of automated storage-and-retrieval systems with pallet racks provides the means to straighten up material flows and, hence, improve the way businesses organize inventories. More recent reports reflect efficiency gains of up to 40% with the introduction of an automated pallet-racking system in the warehouse because of the rapid material handling time and picking accuracies.

Several advanced technologies of robotic shuttles, conveyors, and close working with pallet racks to speed products from one side to the other. For example, a shuttle could transfer a pallet within seconds, thereby avoiding the necessity or possibility for human mistakes. Additionally, these systems may also offer real-time mapping of inventories increased visibility in the entire supply chain through some sensors in addition to machine-learning-facilitated software-package that are fast-moving towards such a possibility.

The automated approach, therefore, will help it in more savings from labor wages. The performance part is its upper hand, as it bathes in the glory of being consistent in excellence. As specific, during 2023, a report stated that automation in a warehousing project reduced the labor costs greatly for businesses, even up to 30%, when the other projects maintained a high productivity. The vertical storage of goods in a warehouse, thus, further permits store more items in the same floor—a good opportunity, more so for the space-strapped urban areas where space is at a premium.

Questions Frequently Asked (FAQs)

What solutions for all sizes of warehouse can be achieved with industrial racking systems than with full warehouse racking?

Back to the roots of direct warehouse shelving and storage rack layout. Industrial racking systems offer complete solutions for all stages of warehouse growth, ranging from basic warehouse shelving and storage rack layouts to complex mezzanine structures up to high-density VNA (very narrow aisle) installations. Manufacturers can provide your warehouse with an ideal array of steel pallet rack upright frames, pallet rack beams, and crossbars and carton flow roller accessories that will optimize your warehouse for efficient unit load storage, increased direct access to each pallet, and the scalability to elicit through bays of repositionable platforms or mezzanine platforms, increasing capacity when installing bays or mezzanine platforms.

Can increased numbers of beam levels and higher pallet rack beams lead to important/pivotal increases in pallet storage capacity?

The beam levels of the pallet racking determine how many positioning pallet storage positions you get per one upright frame, allowing you to change for roll-formed pallet types or carton sizes by adding or changing pallet rack beams. The properly set beam levels along with the receiving frames and welded connections result in a substantial benefit of additional useable cubic capacity, thereby complying with present RMI standards and building code requirements.

When does one select a cantilever rack or a traditional storage rack?

Cantilever rack would suit long, irregular or non-palletized loads like pipe, lumber or sheet goods that require open-front access-proper storage for overhanging loads. For unit loads on pallets, where beams and uprights of good old pallet storage rack create a very good and stable bay arrangement and ease of operation by forklift or pallet shuttle systems, traditional warehouse racks must be preferred.

What advantages in space utilization do drive-in racks and systems carry over the selective pallet rack?

Drive-in rack or drive-in system increase the storage density of a warehouse by allowing forklifts to directly enter the bay so they can access multiple pallets deep, at the expense of direct access to every pallet and opting instead for maximum storage capacity of pallets per bay. These systems will require, in all likelihood, high SKU turnaround, that is, quickly turn over, and same-size product flows, which can, in some installations, be used with the shuttle pallet system or with each bay deep to consider numbers, ensuring that the operation gets enough support with reach and counterbalance trucks.

Helping to optimize storage systems in industrial warehouse, of what significance is a mezzanine?

A mezzanine substantially increases vertical usable floor space without growing the footprint of the building, functioning as a multi-story storage space over pallet-shelving arrangements, customized for offices or light industry applications. It is from the opposite side of pallets and upright frames that mezzanines help to allow you to maximize your warehouse, to a greater extent, with storage densification and workflow, but its manufacturing details must proceed under building codes, hence landing lighting requirements of a given unit, along with stairwells, hoists, and pallet conveyors.
